Description
Product Overview

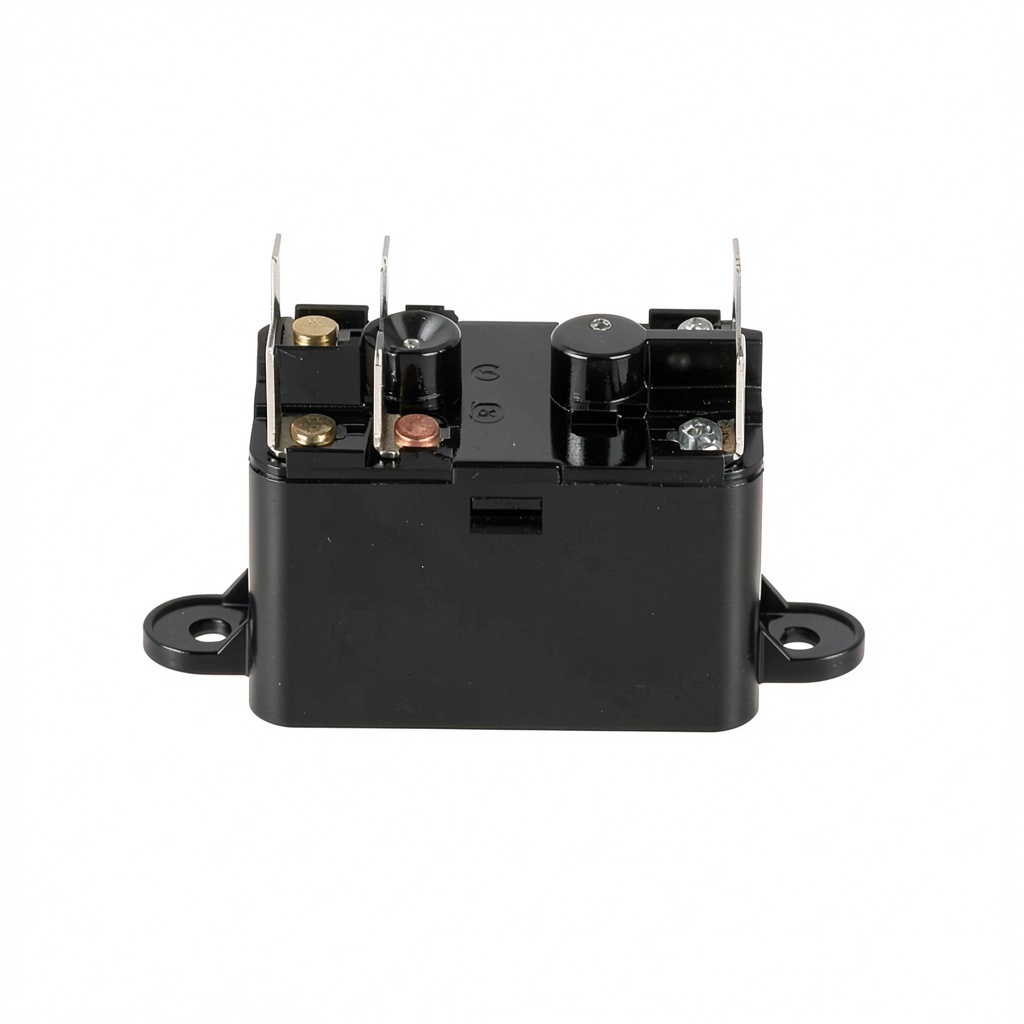

The White Rodgers 90-380 heavy duty switching fan relay is a precision‑engineered component designed to meet the rigorous demands of modern furnace and HVAC systems. Constructed with a durable metal housing and a high‑temperature resistant coil, this relay offers consistent performance even under continuous cycling conditions. The 24 V coil provides reliable actuation, while the SPST contact configuration (one normally‑open and one normally‑closed) ensures accurate fan motor control, reducing wear and extending equipment lifespan.
Dimensions of 3.74 x 1.85 x 1.65 inches and a lightweight design of just 2.5 ounces make the relay easy to handle and install in tight spaces. The product complies with industry standards for electrical safety and thermal endurance, giving installers confidence that the unit will operate within specified parameters for years without failure. Its sealed terminals protect against dust, moisture, and vibration, which are common challenges in furnace environments.
Manufactured by Packard under the reputable White Rodgers brand, the 90-380 model benefits from decades of experience in relay technology. The component’s internal spring‑loaded contacts are fabricated from copper‑tin alloy, providing excellent conductivity and resistance to oxidation. This material choice contributes to a low contact resistance, ensuring efficient power transfer and minimizing energy loss during operation.
Designed for both professional HVAC technicians and knowledgeable DIY users, the relay includes clear labeling on the housing for quick identification of coil voltage and contact type. This feature reduces installation time and helps prevent wiring errors, which can lead to system downtime. The product’s packaging includes a concise installation guide that outlines recommended wiring diagrams and safety precautions.
Overall, the White Rodgers 90-380 relay delivers a blend of durability, performance, and ease of use that makes it a preferred choice for furnace replacement projects, system upgrades, and routine maintenance. Its proven track record, reflected in a 4.6‑star rating from over 160 verified customers, underscores its reliability and value in demanding heating applications.
Usage
This relay is ideally suited for residential and light commercial furnace units that require precise fan control. It can be employed in new installations, as well as in retrofit scenarios where an existing relay has failed or is showing signs of wear. The 24 V coil voltage aligns with standard control board outputs, allowing seamless integration without the need for additional voltage conversion components.
Typical usage environments include forced‑air heating systems, air‑handler units, and variable‑air‑volume (VAV) devices where fan speed modulation is essential for maintaining indoor air quality and comfort. The relay’s robust construction also makes it appropriate for outdoor HVAC equipment that may be exposed to temperature fluctuations and occasional moisture.
For DIY enthusiasts, the relay’s straightforward wiring—one normally‑open and one normally‑closed contact—simplifies troubleshooting and replacement procedures. Users should ensure the power is disconnected before installation, verify coil voltage compatibility, and follow the provided wiring diagram to achieve optimal performance.
Professional technicians will appreciate the relay’s quick snap‑in mounting style, which reduces labor time on service calls. Its reliable contact operation minimizes the risk of fan motor burnout, a common issue when inferior relays are used. By selecting the White Rodgers 90-380, service providers can deliver dependable solutions that meet manufacturer specifications and warranty requirements.
Why Choose Us
Choosing the White Rodgers 90-380 relay means selecting a product backed by a legacy of quality and engineering excellence. Packard’s manufacturing processes incorporate rigorous testing at each production stage, ensuring each relay meets or exceeds performance benchmarks for coil endurance, contact life, and thermal stability.
Our commitment to customer satisfaction extends beyond the product itself. We provide comprehensive technical support, including detailed installation manuals, wiring diagrams, and responsive assistance from trained engineers. Should any issues arise, our warranty coverage and parts availability guarantee that you can quickly obtain a replacement, minimizing system downtime.
In addition to the core product benefits, we prioritize sustainability by using recyclable materials in the relay housing and packaging. This environmentally conscious approach aligns with modern building standards and helps customers meet green certification goals.
Finally, the White Rodgers brand is recognized worldwide for reliability, making this relay a trusted component for OEMs, contractors, and end‑users alike. Our extensive distribution network ensures that the relay is readily available, reducing lead times and supporting efficient project schedules.
Key Features
- Durable metal housing with sealed terminals protects against dust and moisture.
- 24 V coil delivers consistent actuation for reliable fan control.
- SPST contact design (1‑NO, 1‑NC) provides precise switching and reduces wear.
- Compact size and lightweight construction simplify installation in confined spaces.
- Comprehensive technical support and warranty ensure peace of mind for installers.
FAQ
What is the coil voltage for this relay?
The relay operates on a 24 V coil, which is compatible with most standard furnace control boards.
Can this relay be used in outdoor HVAC units?
Yes, the sealed terminals and robust housing are designed to withstand exposure to moisture and temperature variations typical of outdoor installations.
What is the difference between the NO and NC contacts?
The normally‑open (NO) contact closes when the coil is energized, while the normally‑closed (NC) contact opens under the same condition, allowing for flexible control configurations.
Is this relay suitable for DIY replacement projects?
Absolutely. The relay’s clear labeling, straightforward wiring, and included installation guide make it a practical choice for knowledgeable DIY enthusiasts.
How long is the warranty period?
The relay comes with a one‑year limited warranty covering manufacturing defects, backed by responsive customer service for any technical inquiries.
